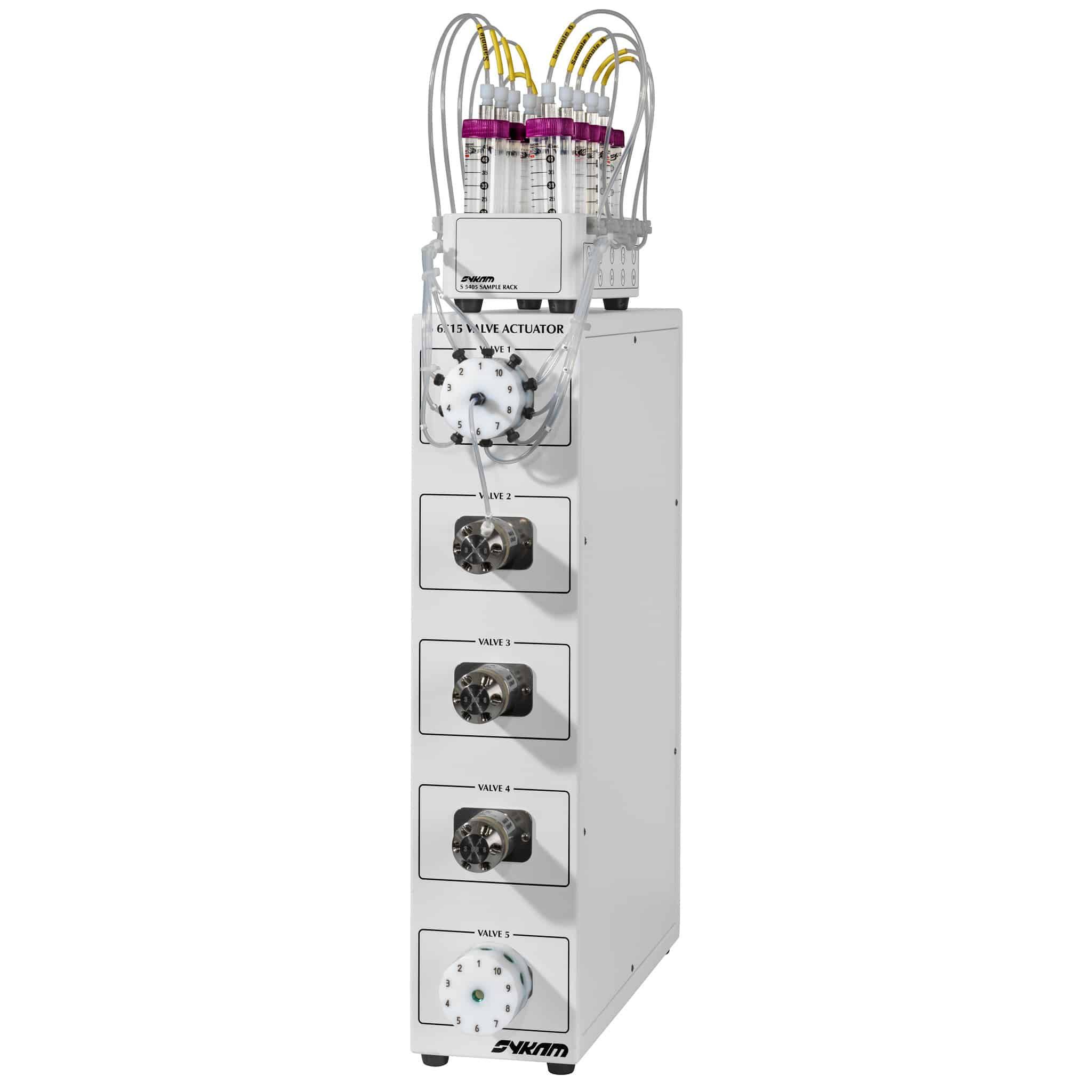

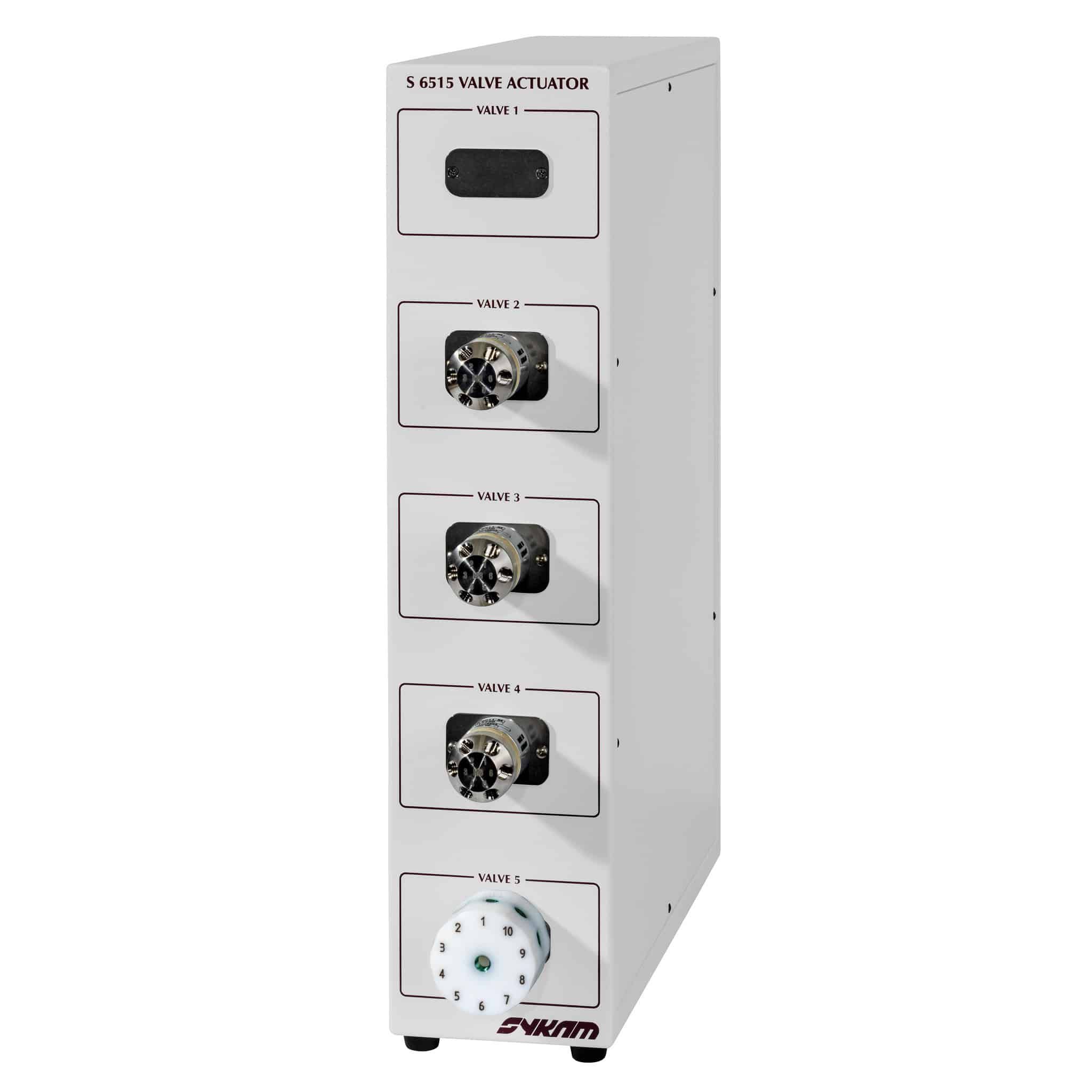

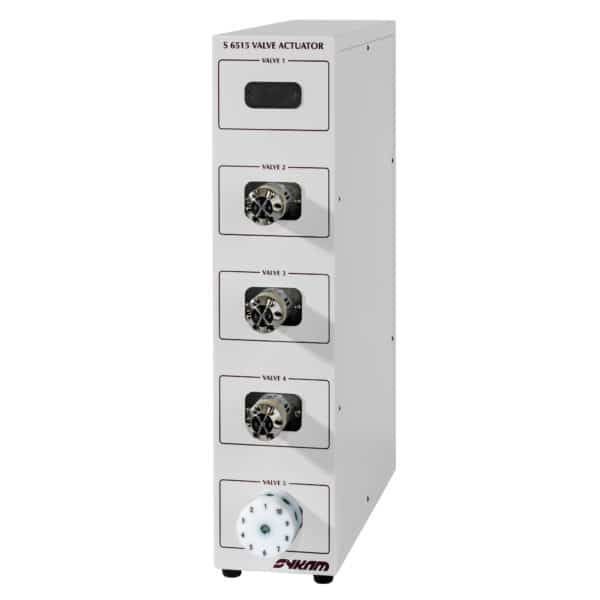

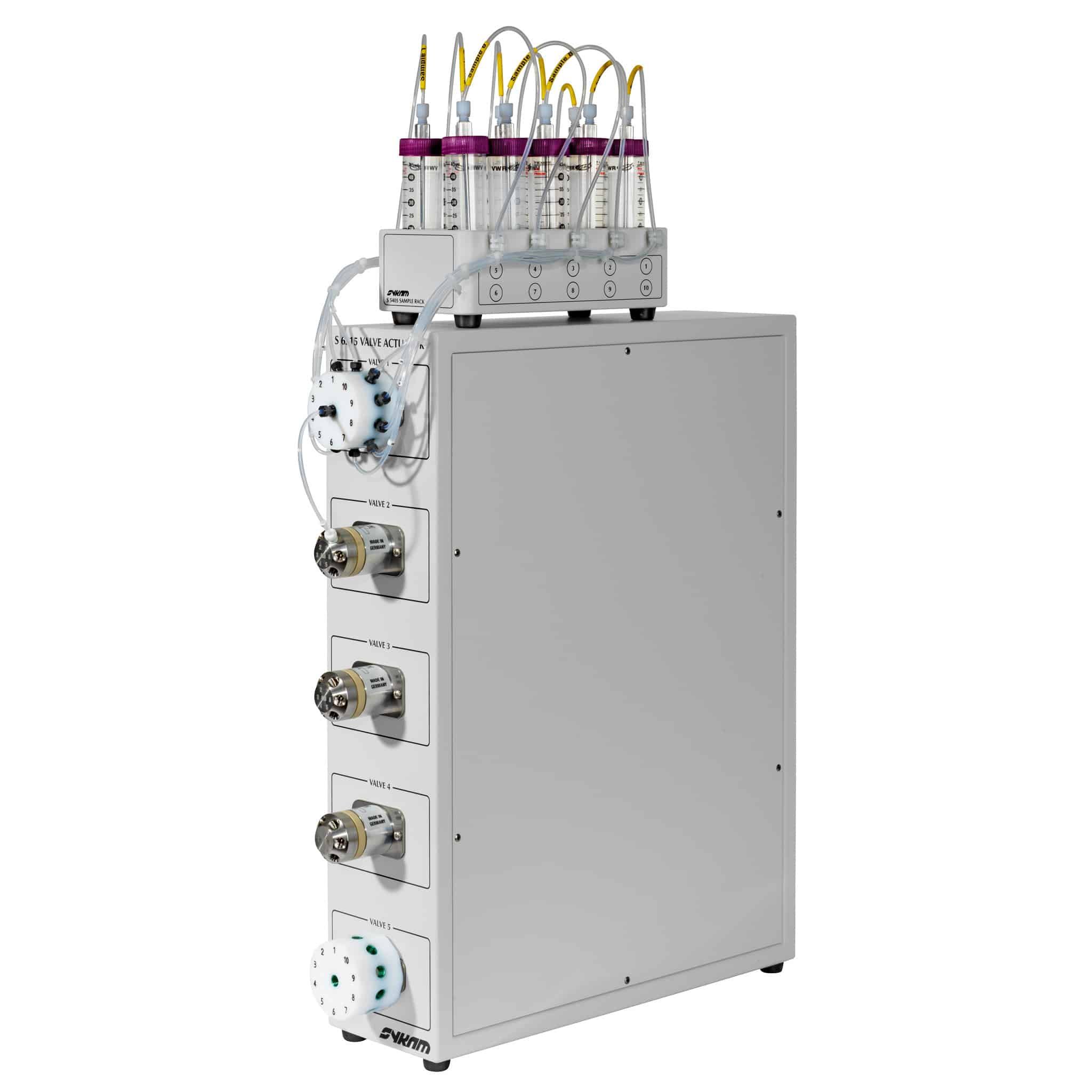

The Sykam S 6515 Automatic Multiple Valve Actuator can be configured with up to 5 independent multiport switching valves with any valve of the Sykam S 6000 or S 6800 valve series.
Description
The Sykam S 6515 Automatic Multiple Valve Actuator can be configured with up to 5 independent multiport switching valves with any valve of the Sykam S 6000 or S 6800 valve series. The S 6515 is part of the S 700 preparative HPLC-systems for a multitude of configurations, but can also be used as a stand-alone unit. The RS232 control and TTL control enables flexible integration with most chromatography systems from other brands as well.
Additional information
| Number of valves | Up to 5 valves |
|---|---|
| Valve type | Any valve of the Sykam S 6000 and S 6800 series |
| Wetted materials | Depending on valve type |
| Max. pressure | Depending on valve type |
| Control | Manual, RS232, digital I/O |
| Power Supply | 100 – 240 V, 50 – 60 Hz |
