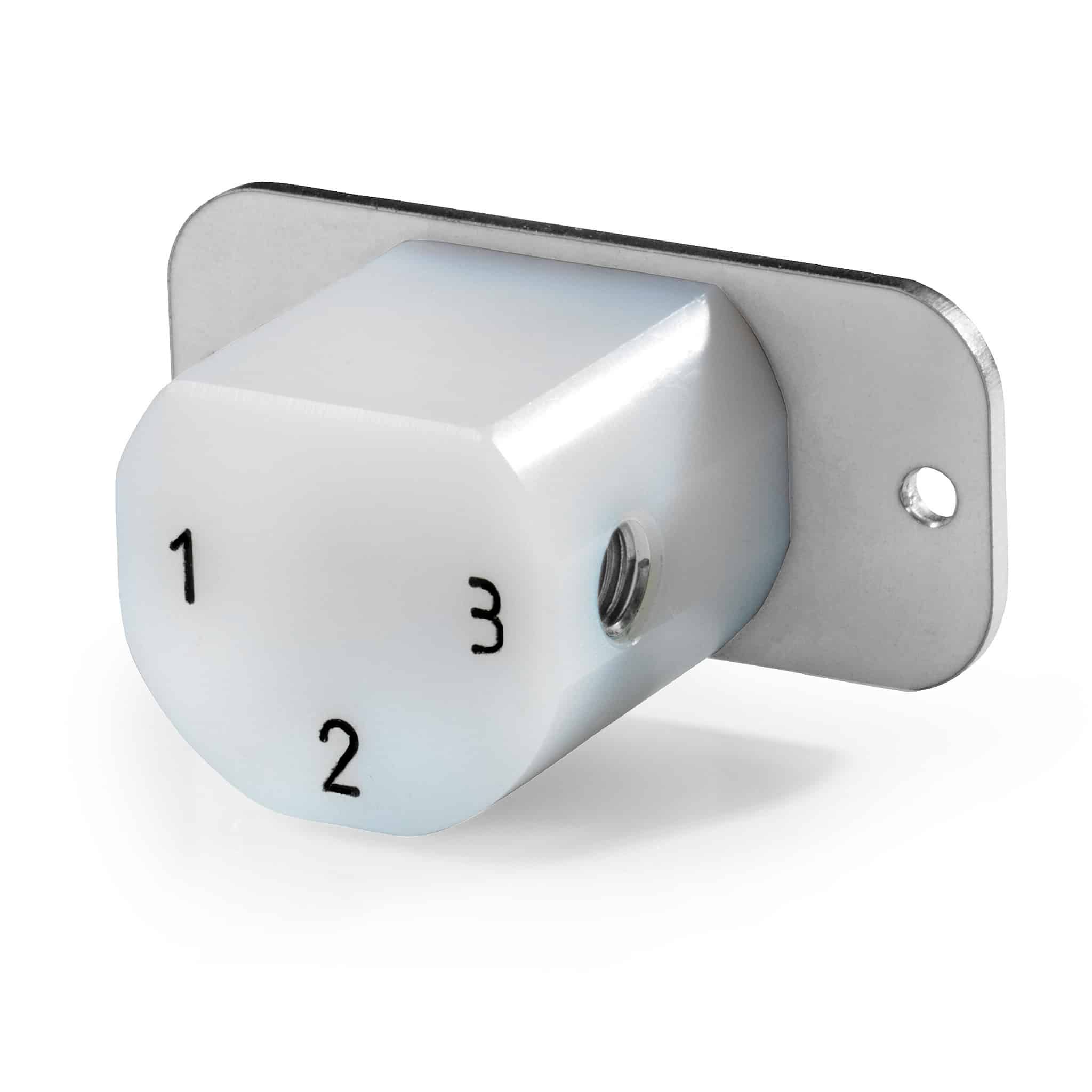

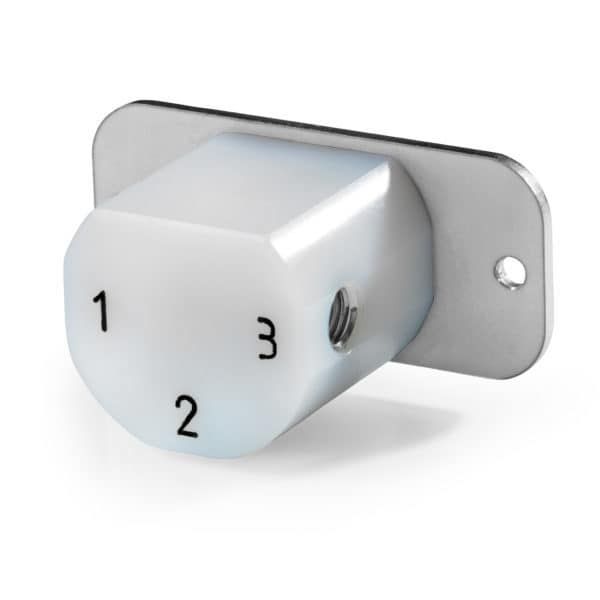

The Sykam S 681x 3/2-Way LC Valve is chemically inert, suitable for aggressive media, maintenance free and available in custom OEM configurations.
Description
The Sykam S 681x 3/2-Way LC Valve from the low pressure S 6800 Series. The only wetted materials are PTFE™ and PCTFE, both highly inert materials. The valve rotor and valve body is suitable for aggressive media without degradation of the valve or the transported liquid. The robust design needs no sealing parts and is therefore maintenance free.
You can combine the S 681x 3/2-Way LC Valve with the S 6515 Multiple Valve Actuator.
Sykam S 6800 LC Valve Series Brochure
1 file(s) 3.70 MB
Sykam Preparative HPLC Solutions Brochure
1 file(s) 17.01 MB
Additional information
Max. pressure | 10 bar |
---|---|
Connection | 1/4" – 28 UNF (1/16" tubing), M8 (1/8" tubing) |
