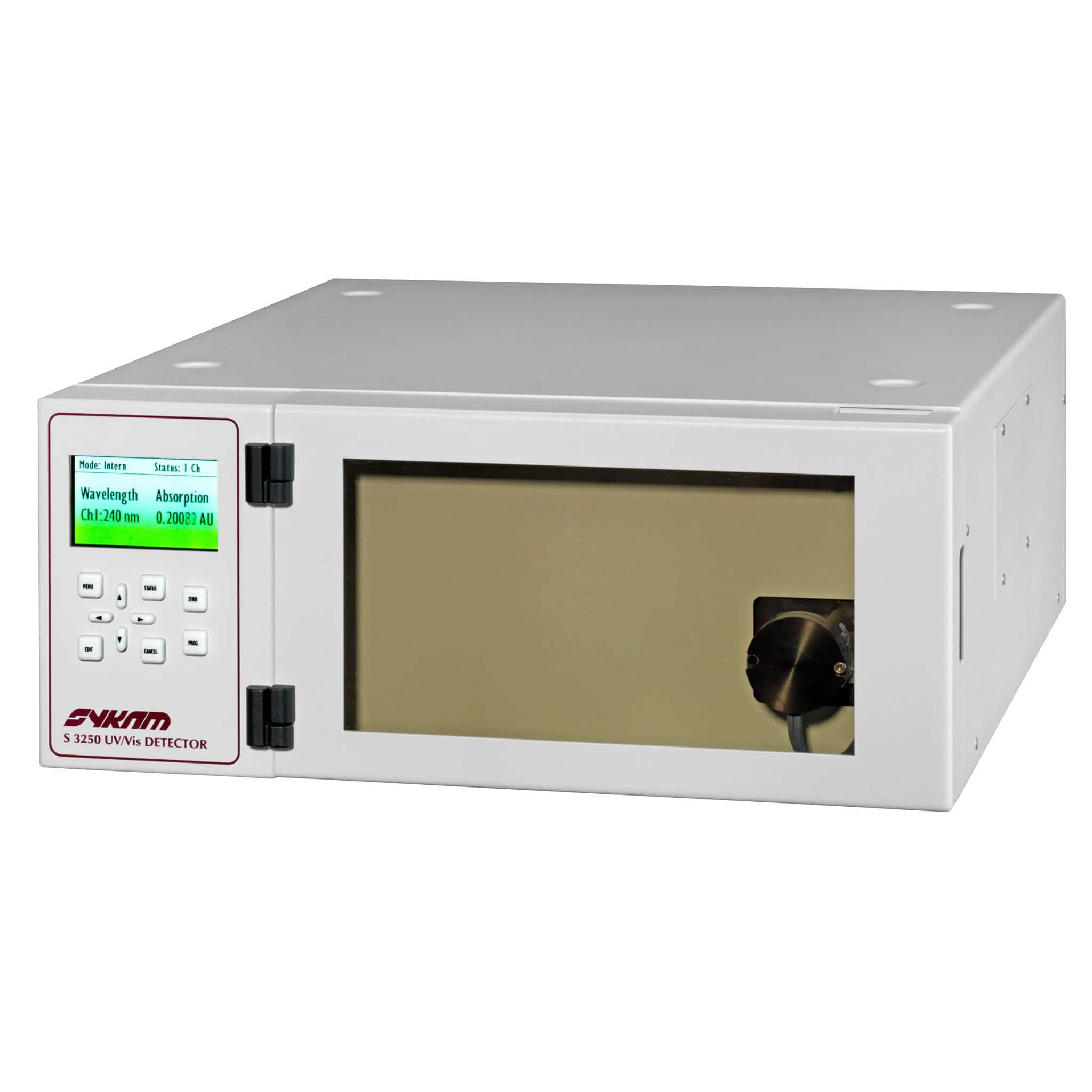

S 3250 UV/Vis Detector

Path: Home > Product Shop > Instruments > Analytical HPLC > Sykam S 600 System > S 3250 UV/Vis Detector

Call for price

The Sykam S 3250 UV/Vis Detector with high sensitivity, stable baseline and low drift signal, making the S 3250 suitable for routine as well as advanced research applications.

SKU: S3250 Category: Tags: ,
Sykam Logo

Description

The Sykam S 3250 UV/Vis Detector is a single or dual channel variable wavelength detector with a wavelength range of 190 to 900 nm, built around a high quality “moving monochromator” optics for minimal loss of light energy at any chosen wavelength. The result is a UV/Vis detector with high sensitivity, stable baseline and low drift signal, making the S 3250 suitable for routine as well as advanced research applications.

An integrated wavelength program allows for free programming of different wavelengths within a run. A special feature of the S 3250 is the integrated peak detector with the possibility of direct control of external solenoid valves by means of an integrated 24 Volt output stage with programmable delay function. Just adding a low-pressure three-way valve allows for simple fraction collection or solvent recycling.

Additional information

Dimensions 47,8 × 31 × 16,5 cm
Detector

Single channel, dual channel (optional)

Wavelength range

190 – 800 nm

Optical bandwidth

5 nm

Wavelength programming

Up to 10 wavelengths per analysis

Accessible without removing covers

Flow cell at the front, for easy access and column connection

Peak detector

Integrated

Output stage

24 Volt valve control

Online fast wavelength scanning

Optional

Flow cell

Analytical stainless steel, analytical PEEK, micro stainless steel, micro PEEK, preparative stainless steel, preparative PEEK
