The ProtEx columns are specifically designed to have lowest non-specific adsorption and high resolution for protein purifications. ProtEx columns are packed with a 5 µm resin and available as strong cation exchanger (SP) and weak anion exchanger (DEAE). The CQA and CQK series of columns are high performance columns based on 10 µm bead size polyhydroxymethacrylate resins and available as strong and weak anion and cation exchangers (SP, CM, QA, DEAE). The CQA and CQK resins are available with a bead size of 10 µm and 30 µm.

On this page you’ll find a list of the available columns and resins. For sample chromatograms of these columns you can download the PDF below.

IEX Chromatograms

1 file(s) 1.66 MB

Download

Mitsubishi MCI Gel™ Main Catalog (XtalSpeed)

1 file(s) 9.98 MB

Download

High Performance ProtEx columns

Art. Nr.	Product Name	Dimensions ID x L	Column Material	Particle Size (µm)	Functional Group	pH Range
0146-03	MCI Gel™ ProtEx-DEAE	4.6 mm x 50 mm	PEEK	5	Diethylaminoethyl	2~12
0146-04	MCI Gel™ ProtEx-DEAE	7.5 mm x 100 mm	PEEK	5	Diethylaminoethyl	2~12
0037-03	MCI Gel™ ProtEx-SP	4.6 mm x 50 mm	PEEK	5	Sulphopropyl	1~13
0037-04	MCI Gel™ ProtEx-SP	7.5 mm x 100 mm	PEEK	5	Sulphopropyl	1~13

CQA & CQK series columns

Art. Nr.	Product Name	Dimensions ID x L	Column Material	Particle Size (µm)	Functional Group	pH Range
0126-01	MCI Gel™ CQA31S	7.5 mm x 75 mm	Stainless Steel	10	DEAE	2~12
0130-01	MCI Gel™ CQA35S	7.5 mm x 75 mm	Stainless Steel	10	QA	2~12

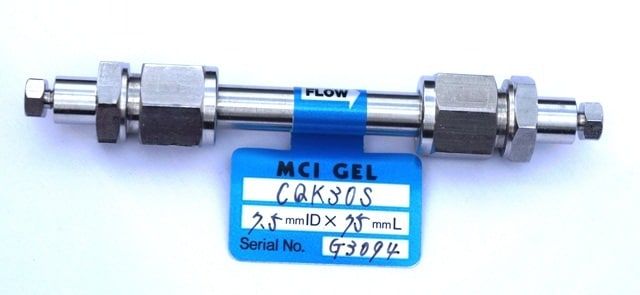

0036-01	MCI Gel™ CQK30S	7.5 mm x 75 mm	Stainless Steel	10	SP	1~13
0038-01	MCI Gel™ CQK31S	7.5 mm x 75 mm	Stainless Steel	10	CM	1~13

CQA & CQK series of resins

Art. Nr.	Product Name	Packing Size	Functional Group	Particle Size (µm)	Pore Size (nm)	pH Range
1126-01	MCI Gel™ CQA31S	10 gram	DEAE	10	60	<11
1126-02	MCI Gel™ CQA31S	25 gram	DEAE	10	60	<11
1126-03	MCI Gel™ CQA31S	50 gram	DEAE	10	60	<11
1127-01	MCI Gel™ CQA31P	100 ml	DEAE	30	60	<11

1130-01	MCI Gel™ CQA35S	10 gram	QA	10	60	2~12
1130-02	MCI Gel™ CQA35S	25 gram	QA	10	60	2~12
1130-03	MCI Gel™ CQA35S	50 gram	QA	10	60	2~12
1131-01	MCI Gel™ CQA35P	100ml	QA	30	60	2~12

1036-01	MCI Gel™ CQK30S	10 gram	SP	10	60	1~13
1036-02	MCI Gel™ CQK30S	25 gram	SP	10	60	1~13
1036-03	MCI Gel™ CQK30S	50 gram	SP	10	60	1~13
1037-01	MCI Gel™ CQK30P	100 ml	SP	30	60	1~13

1038-01	MCI Gel™ CQK31S	10 gram	CM	10	60	>4
1038-02	MCI Gel™ CQK31S	25 gram	CM	10	60	>4
1038-03	MCI Gel™ CQK31S	50 gram	CM	10	60	>4
1039-01	MCI Gel™ CQK31P	100 ml	CM	30	60	>4
